Wine Cellar of the Quinta de Adorigo in Portugal

Sinuous structure

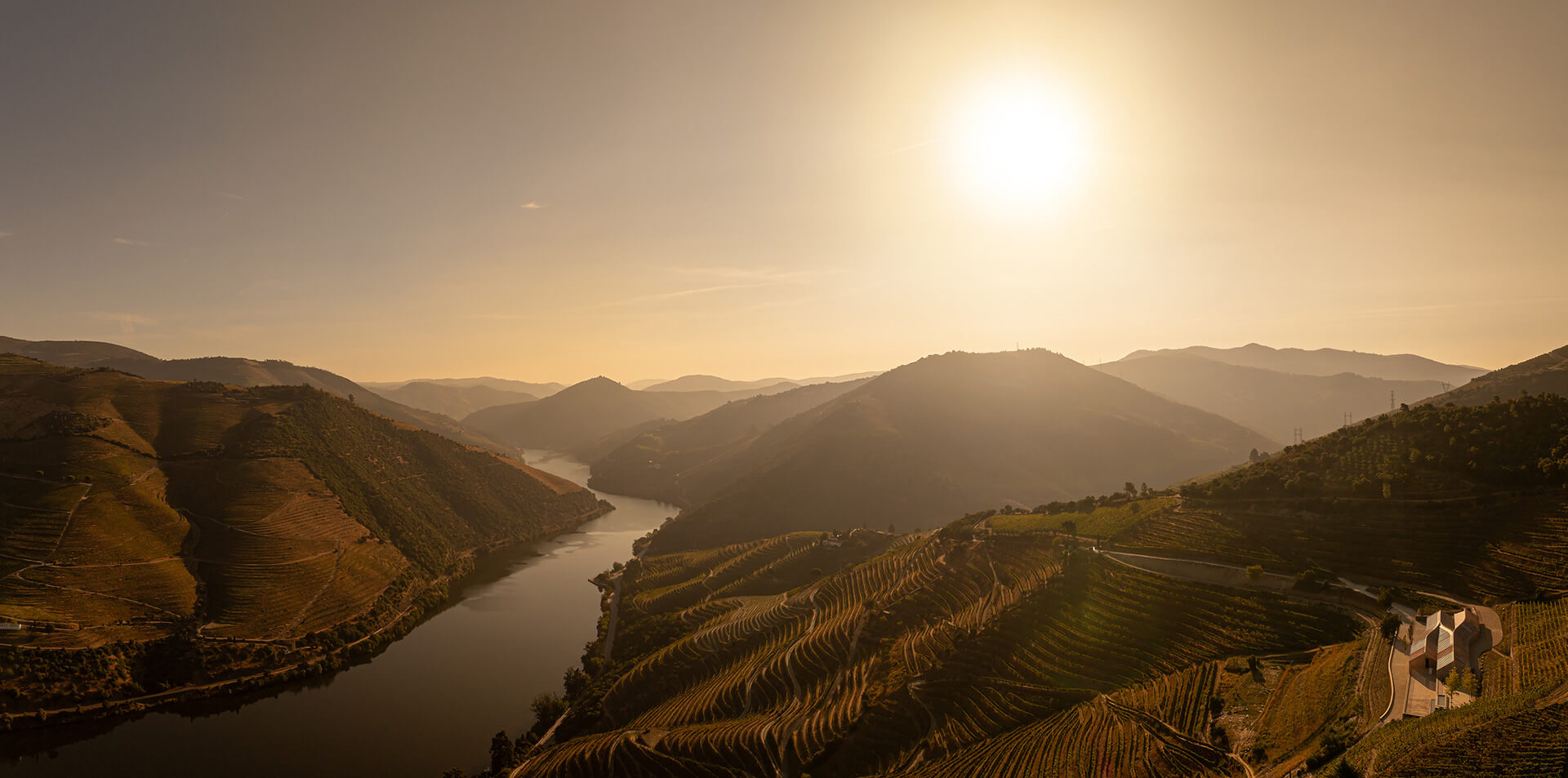

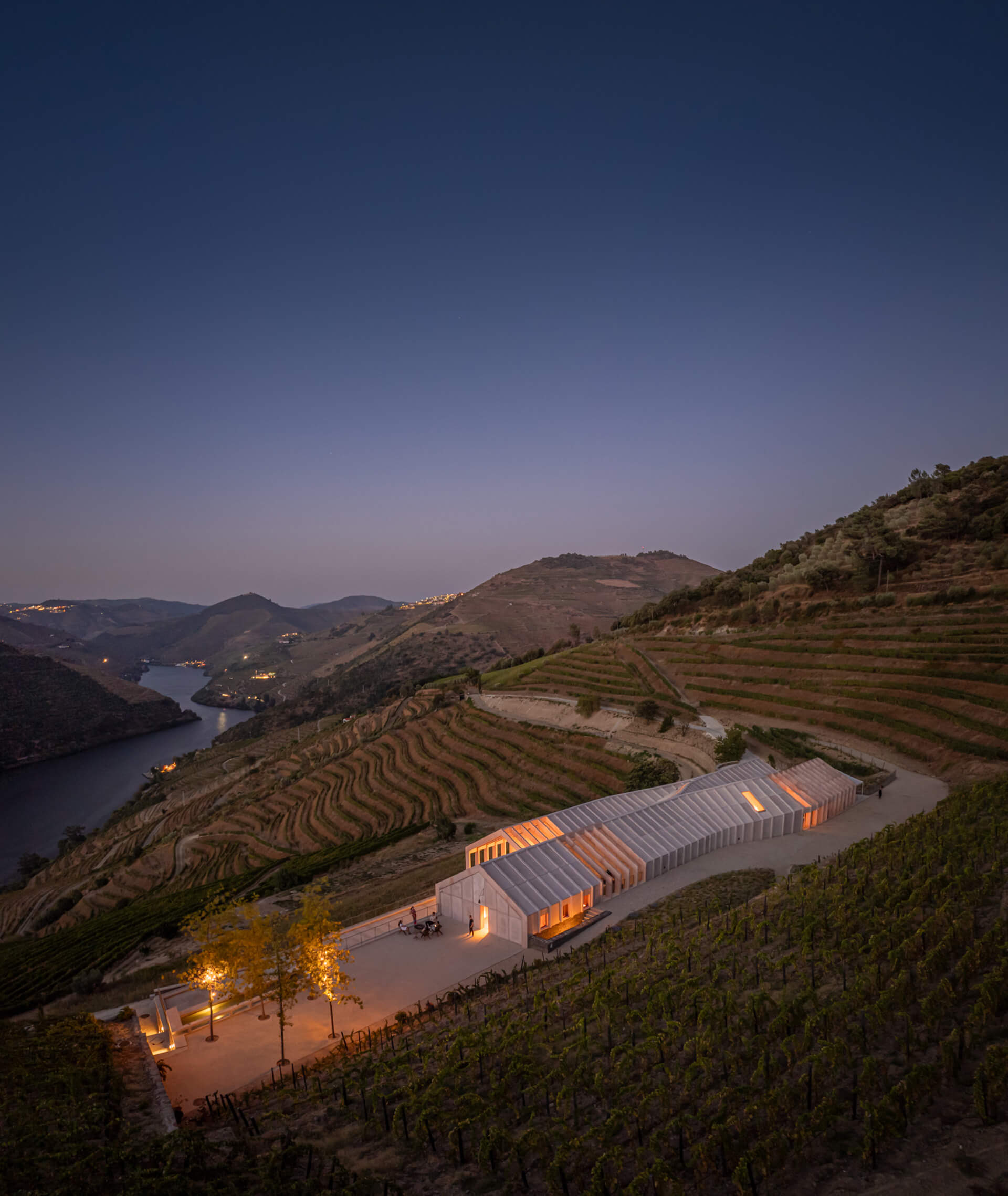

The winery is part of a family-run wine tourism development in Portugal’s Alto Douro Wine Region, a UNESCO World Natural and Cultural Heritage Site. Together with a hotel still under construction, the winery blends into the landscape, combining tradition with innovation and sustainability.



Context Integration

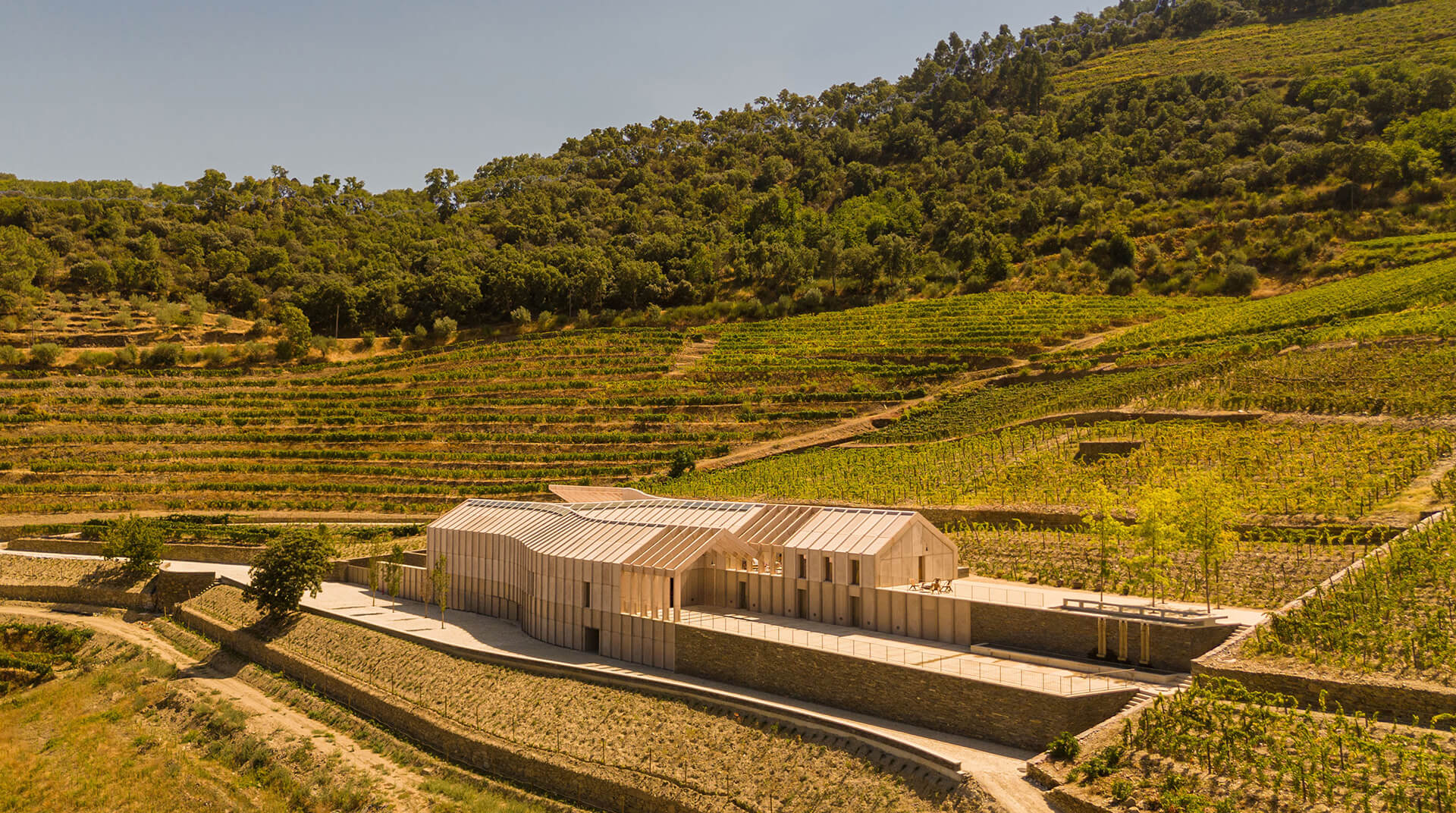

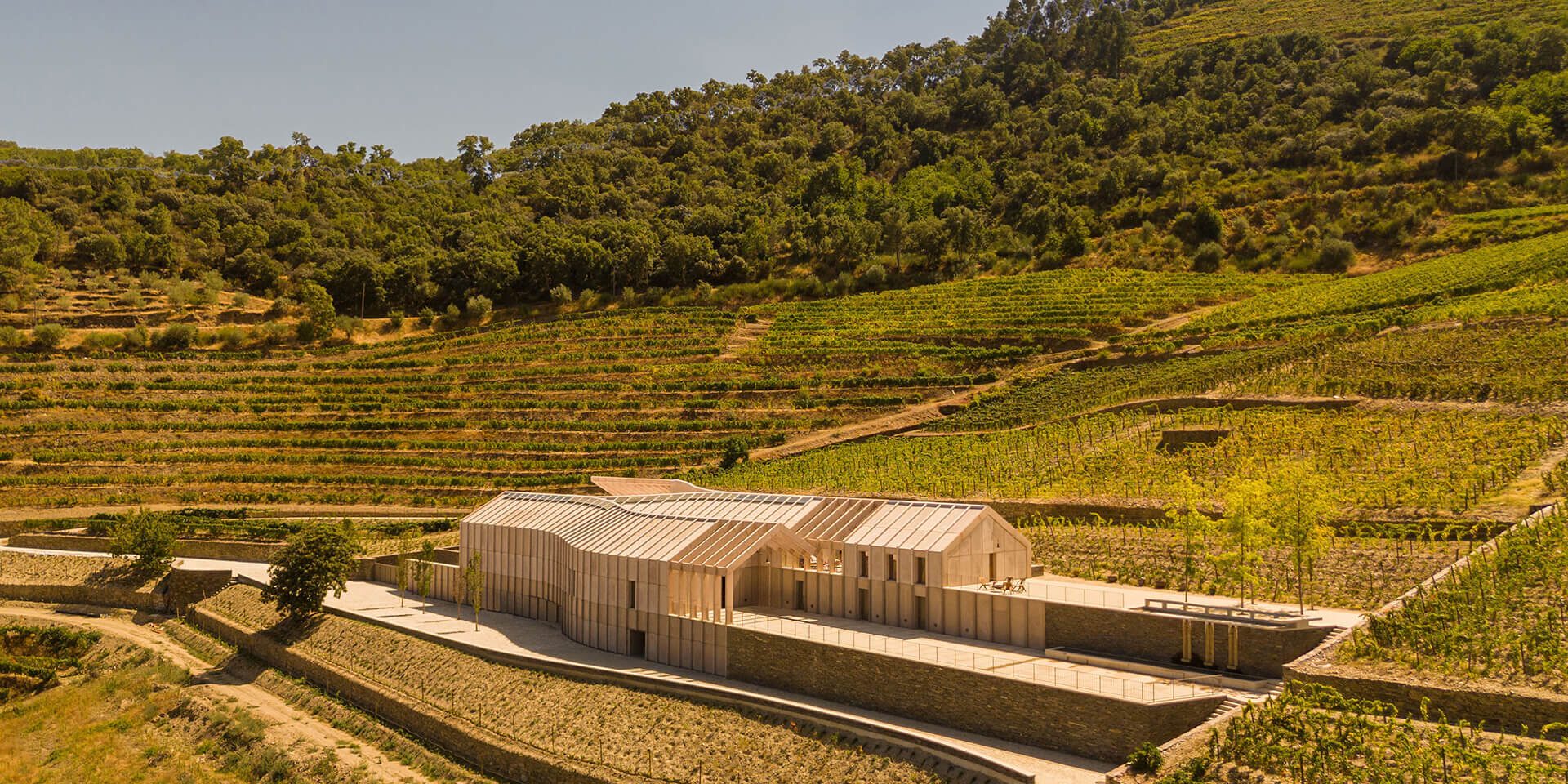

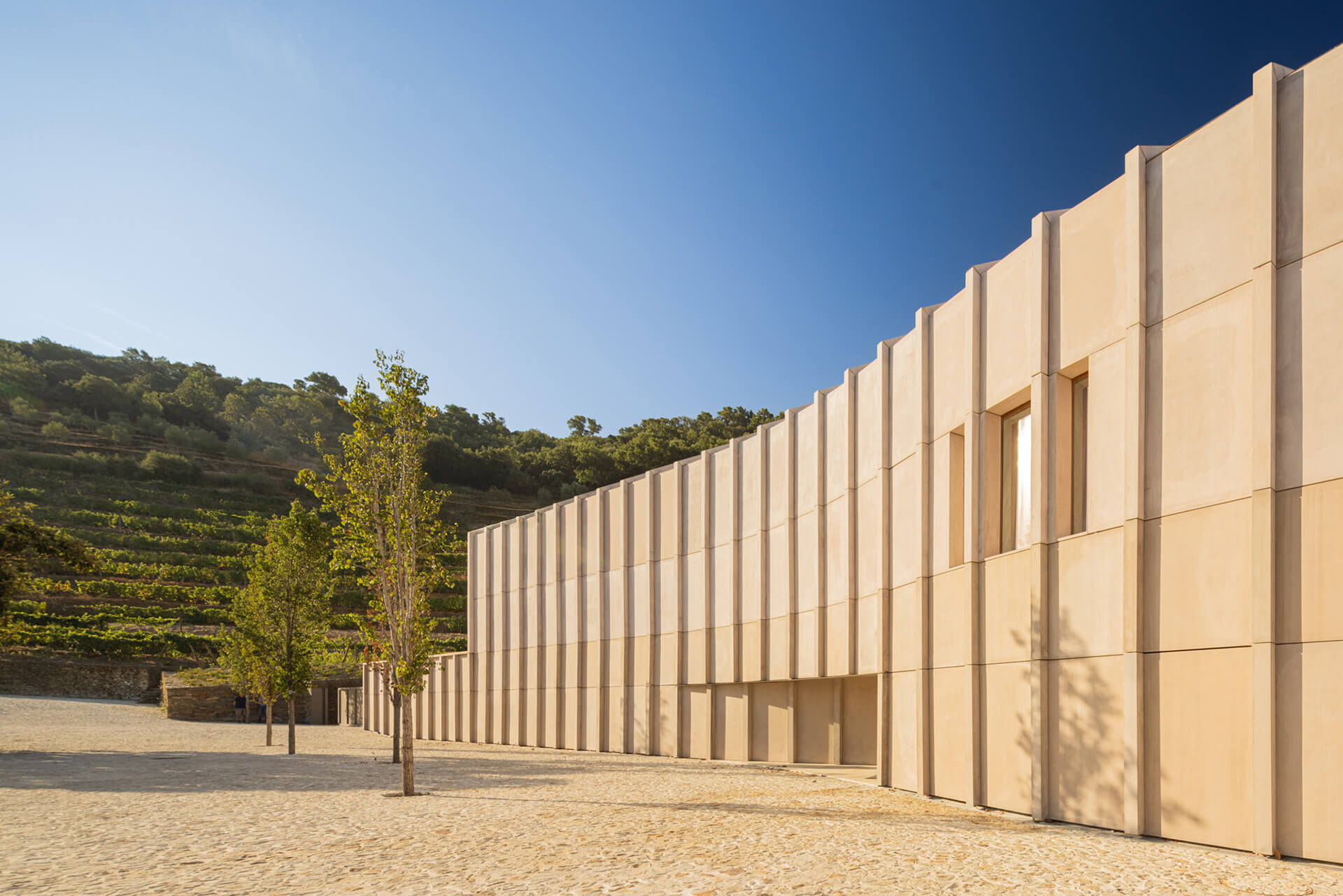

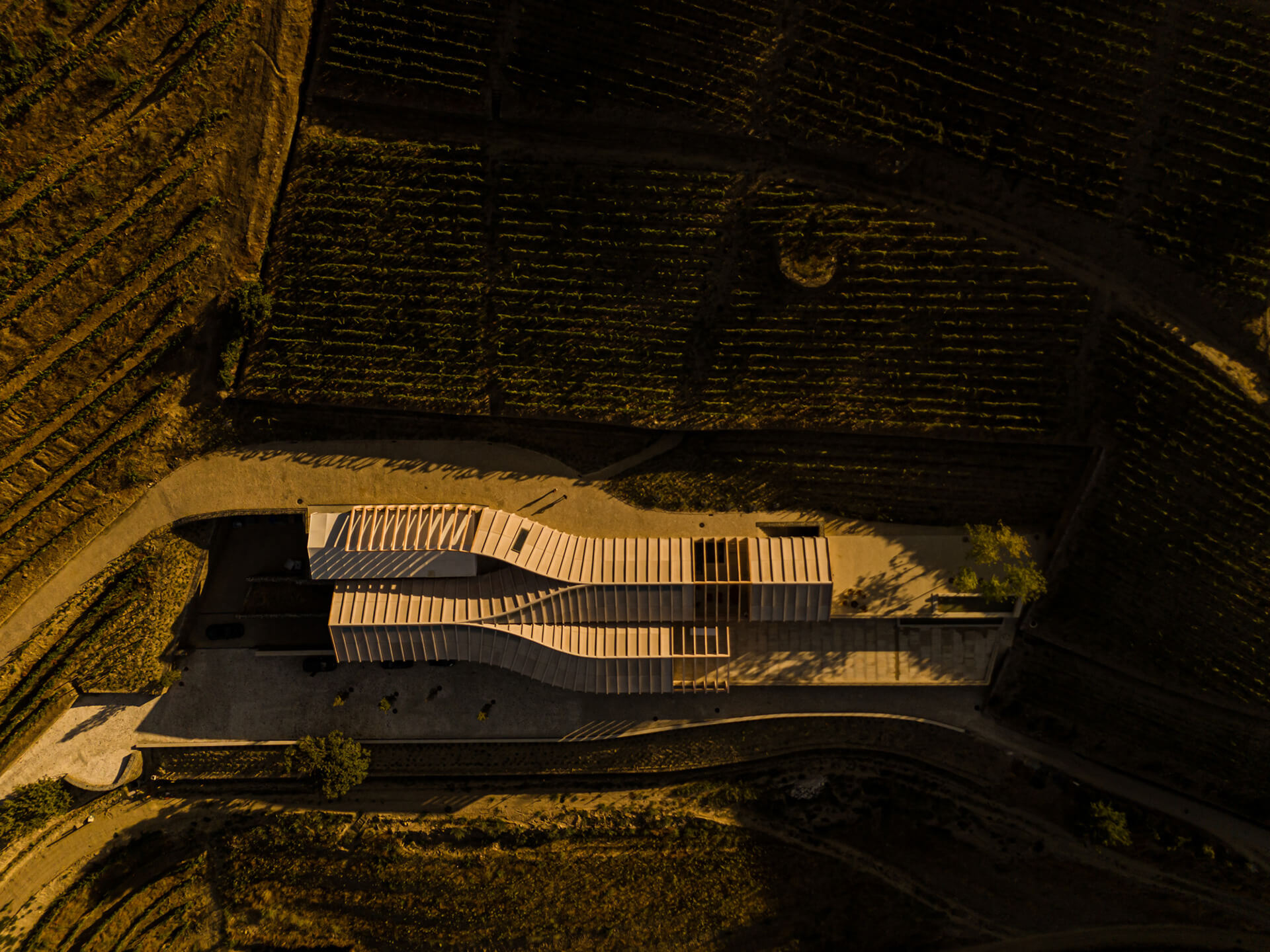

Designed to minimize environmental impact, the project utilizes existing infrastructure while anticipating future adaptations. Its curvilinear architecture echoes the zigzag vineyards without compromising functionality. Locally sourced materials such as schist and granite reduce transport emissions, while wooden structures replace concrete where possible, limiting CO2 release. Over time, the pinkish greys, greens and browns take on new hues and textures, potentiating the building’s integration into the environment.

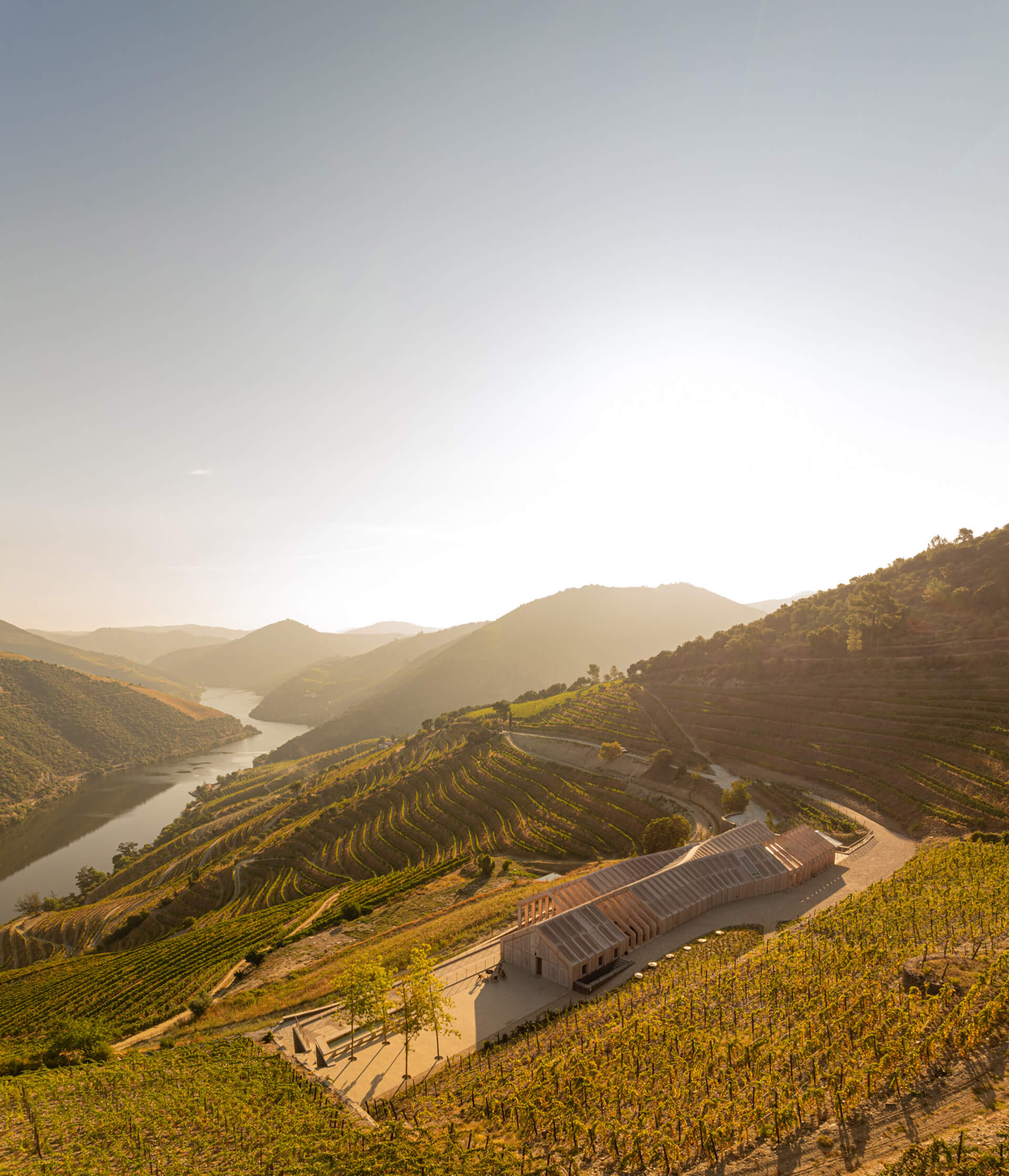

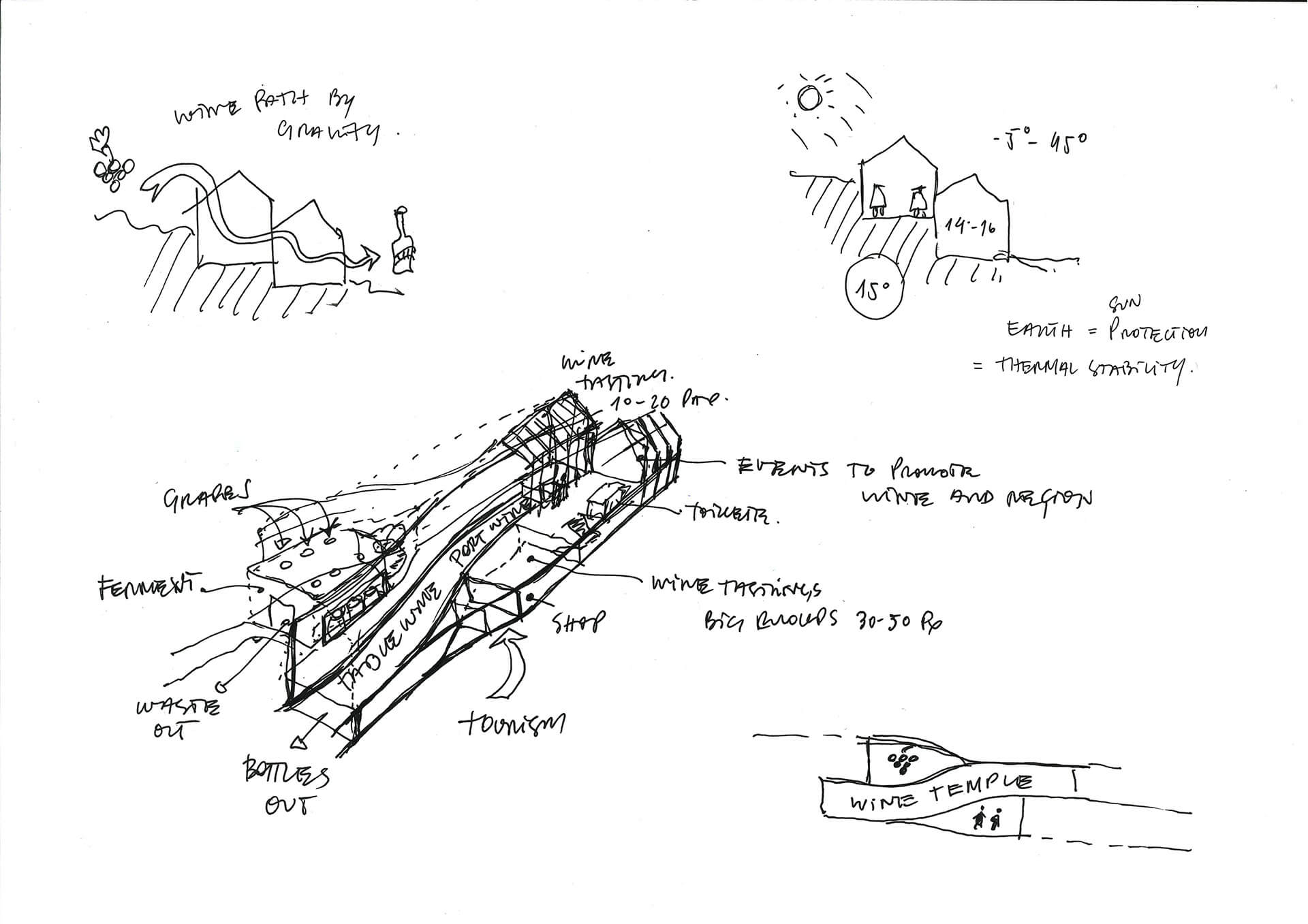

The configuration of the building is a set of interlocking naves that follow the existing topographic slopes, replicated on its internal mechanics, where the winemaking process takes place by gravity. The gravitational system is a traditional solution on the banks of the River Douro and this wine cellar showcases it with all its up to-date operational capabilities.





Design Philosophy

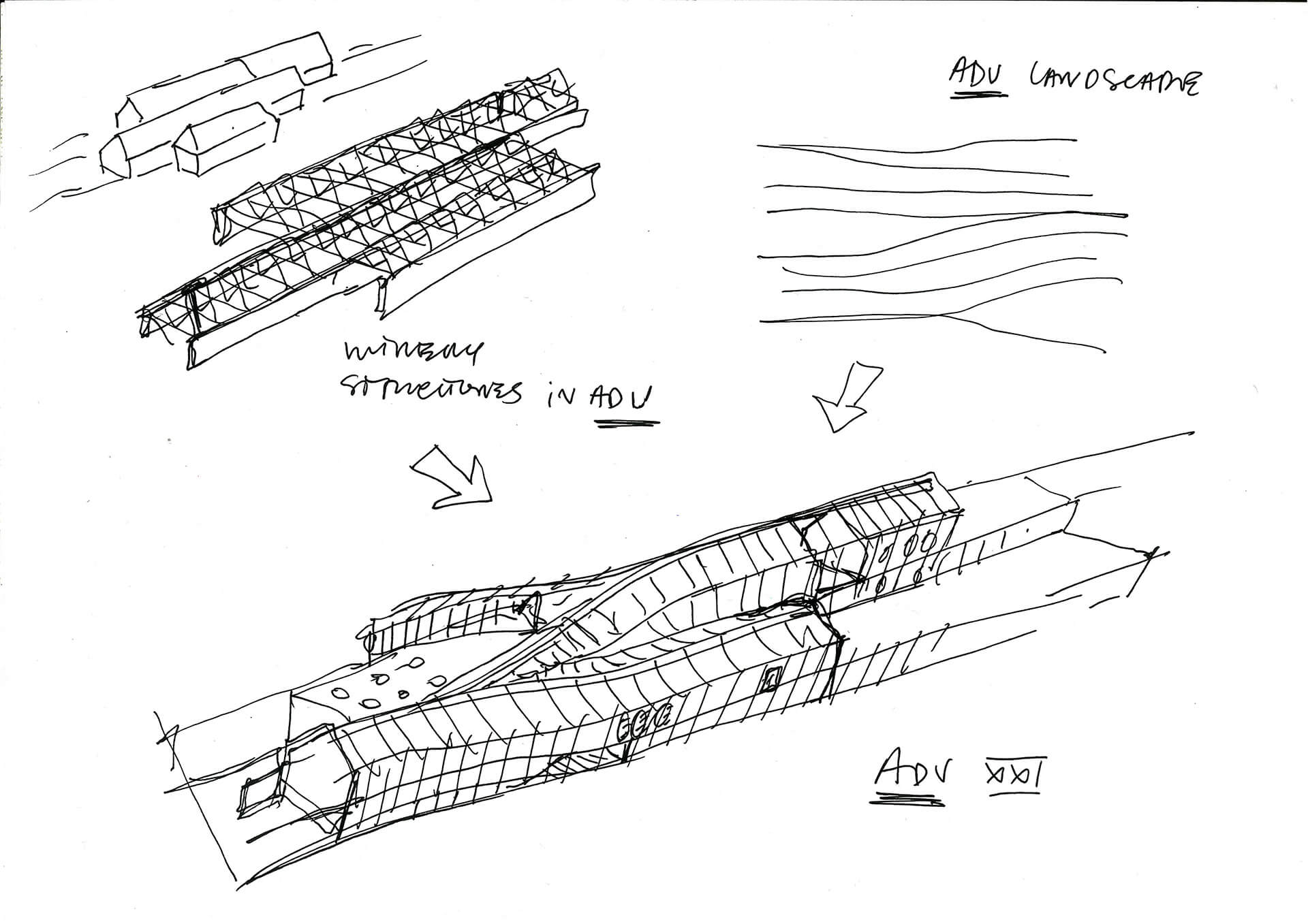

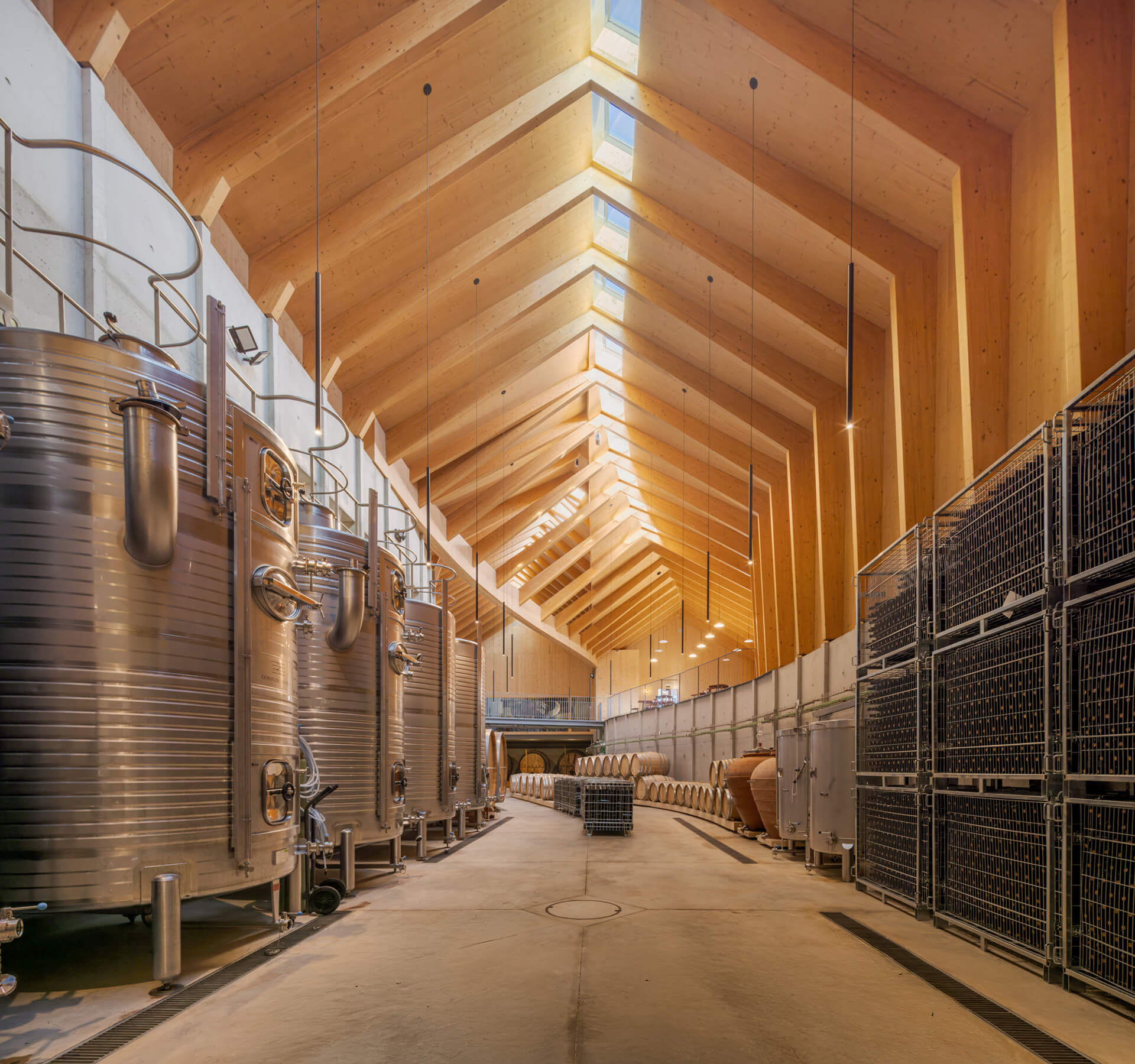

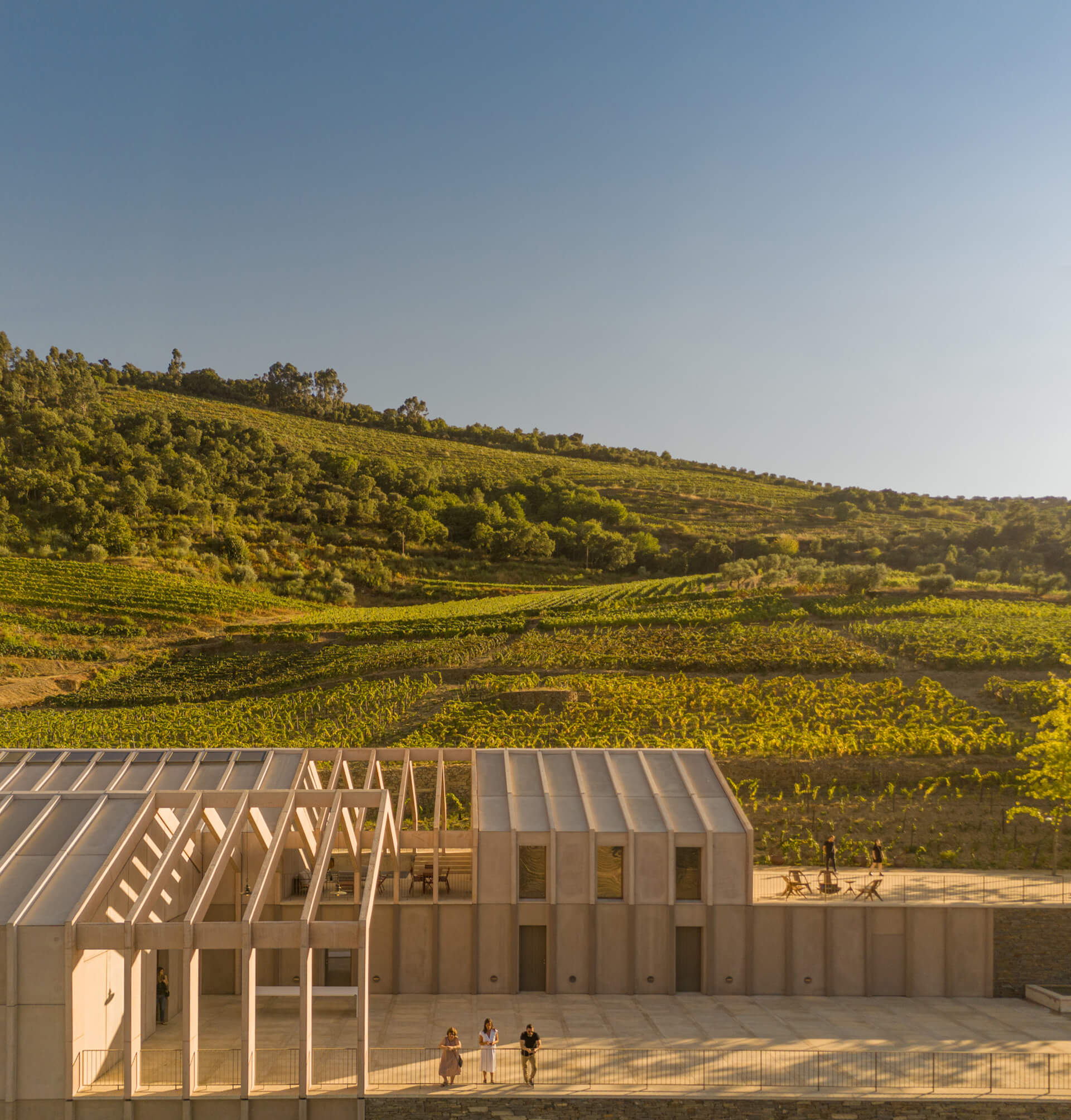

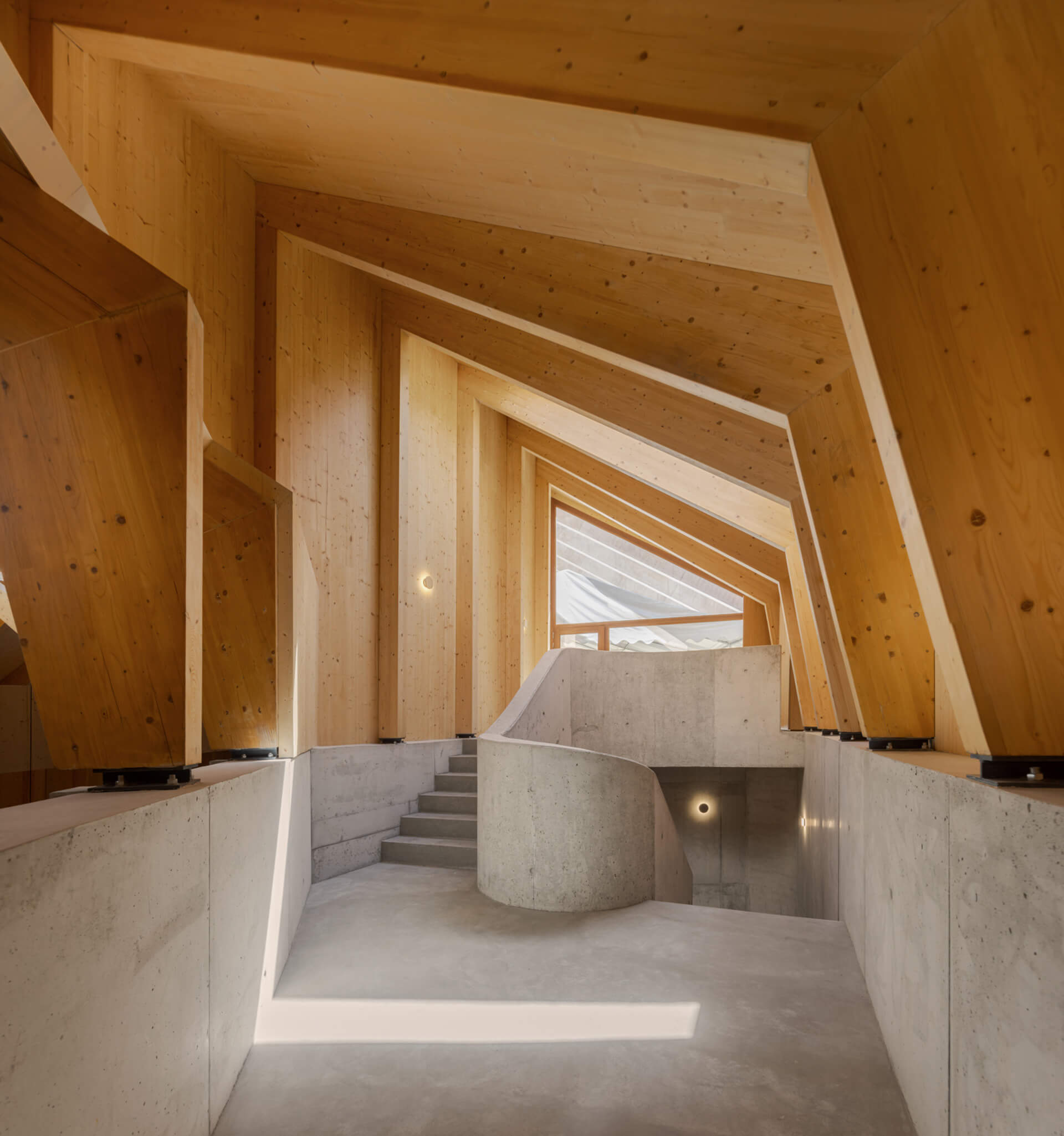

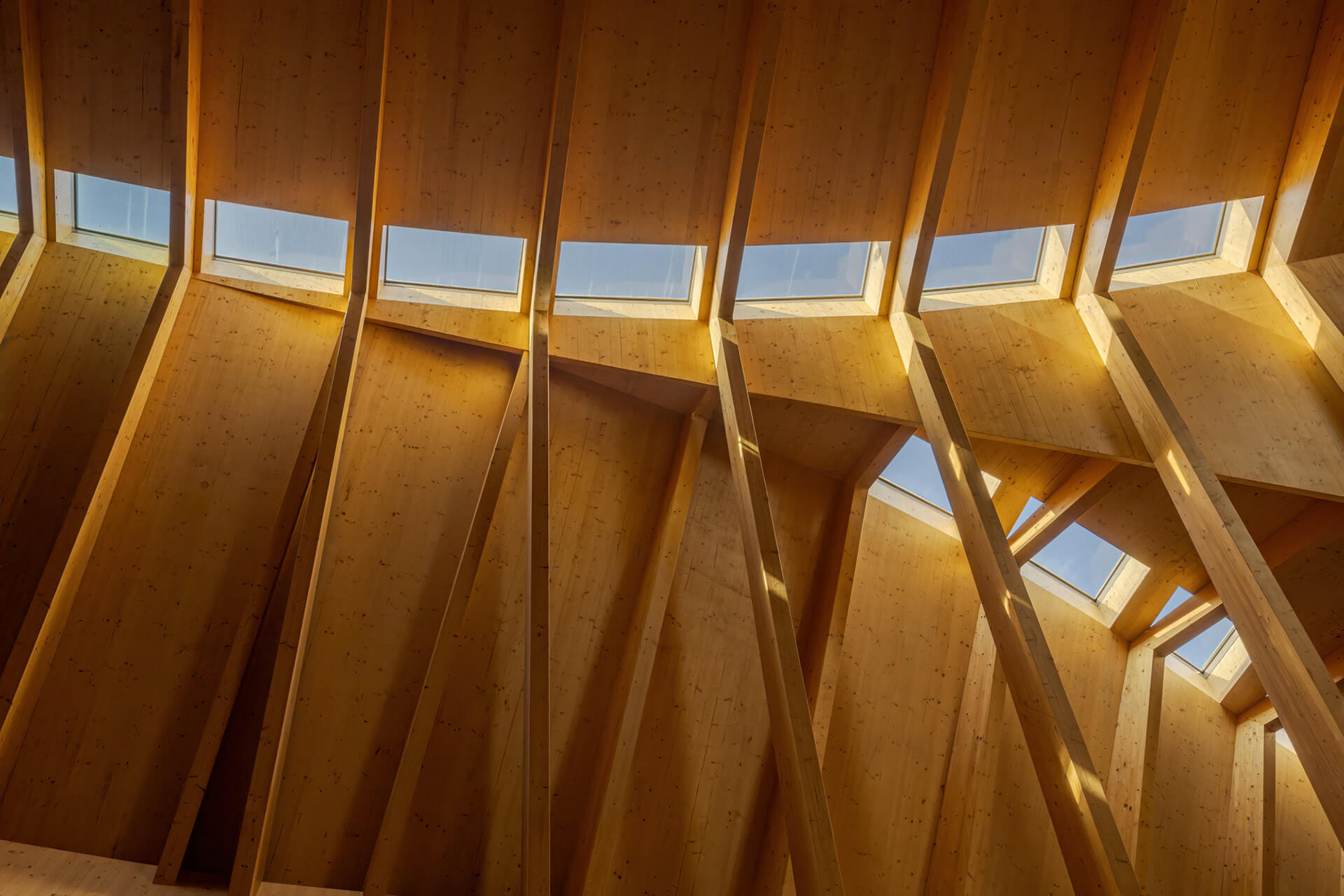

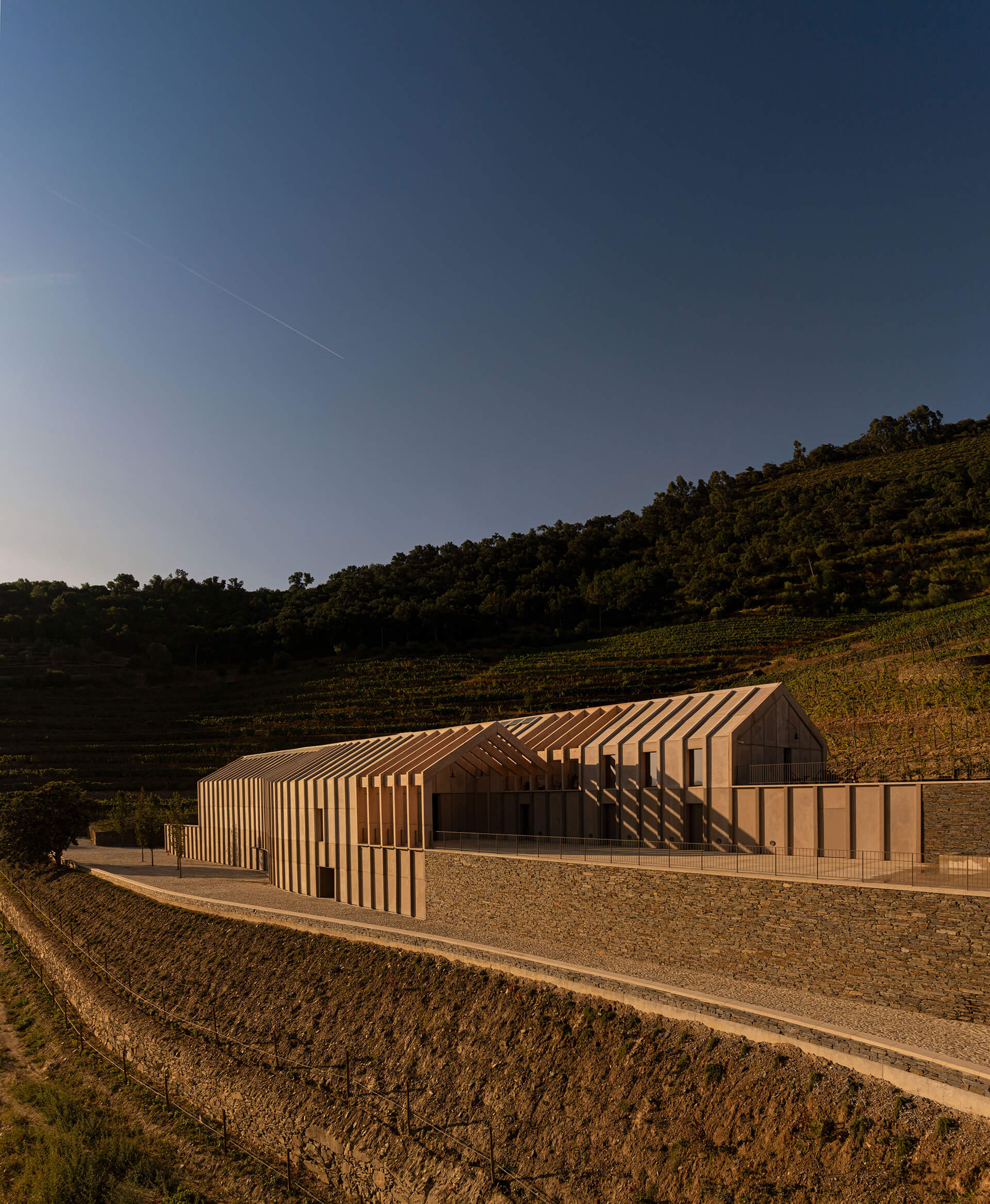

The geometry of the cellar’s roof interprets the vernacular gable roof structured in wood. This structure is exposed in the winery, and becomes a sinuous, continuous and organic sculptural element that flows through the tangential curves of the vineyards.

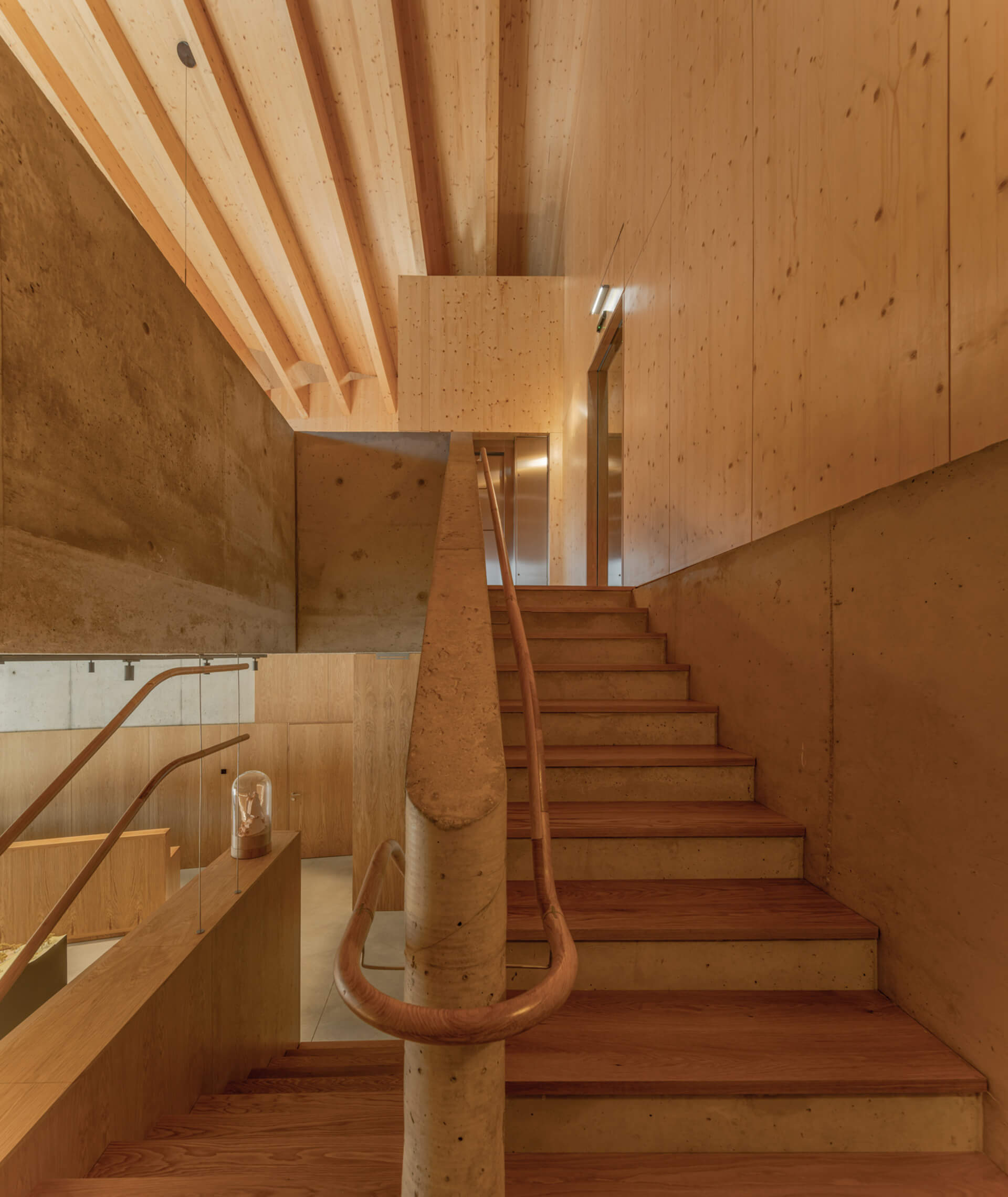

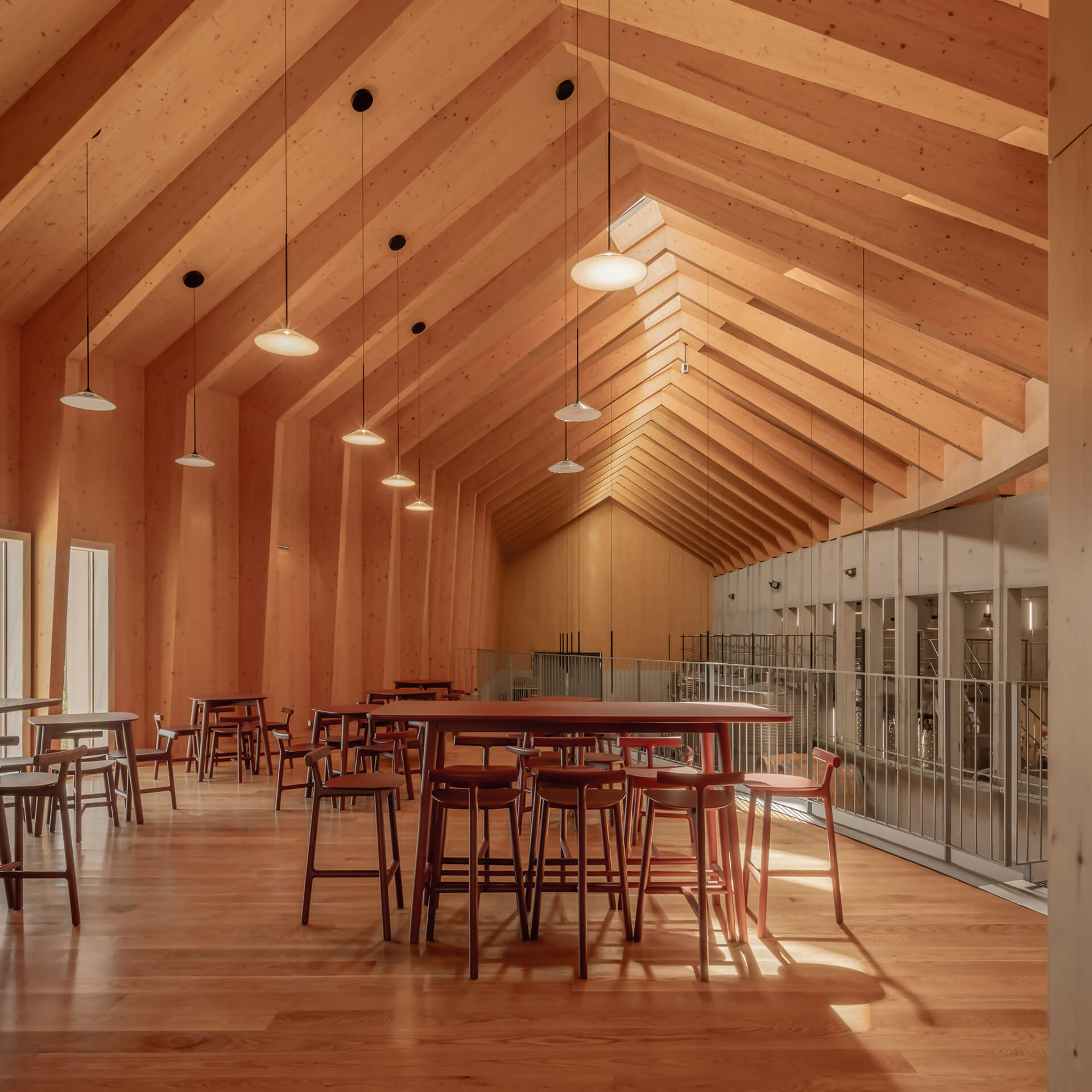

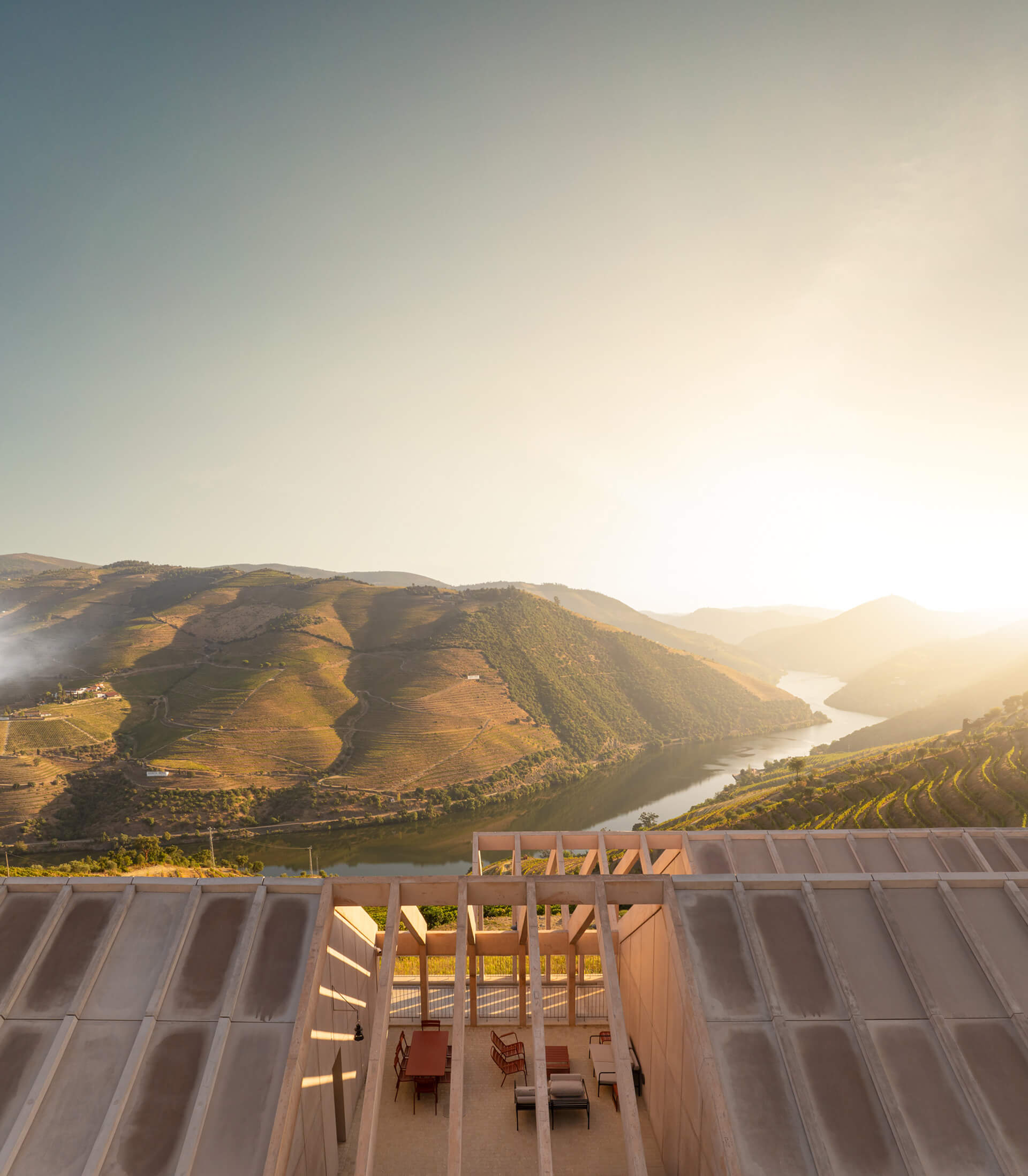

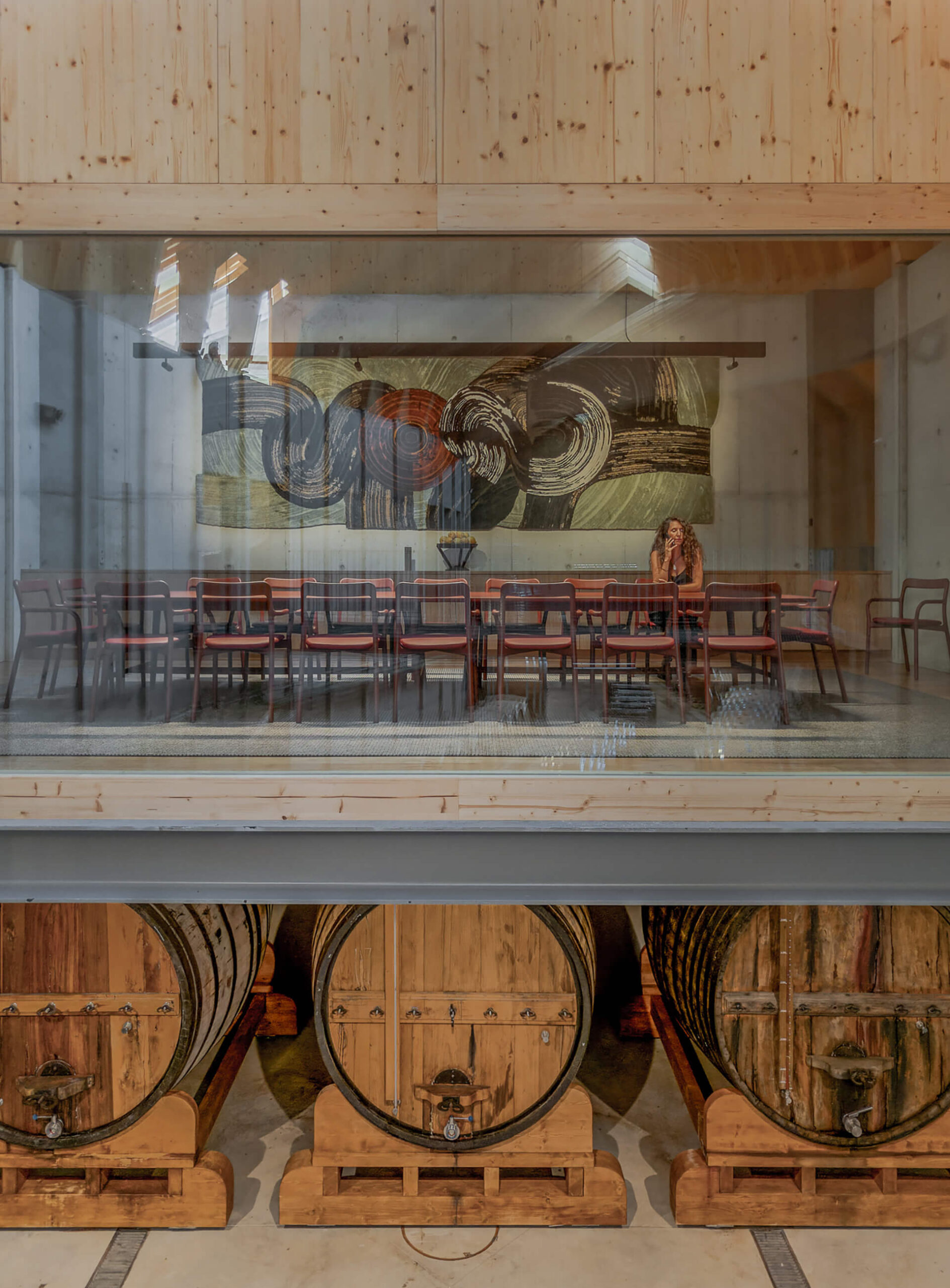

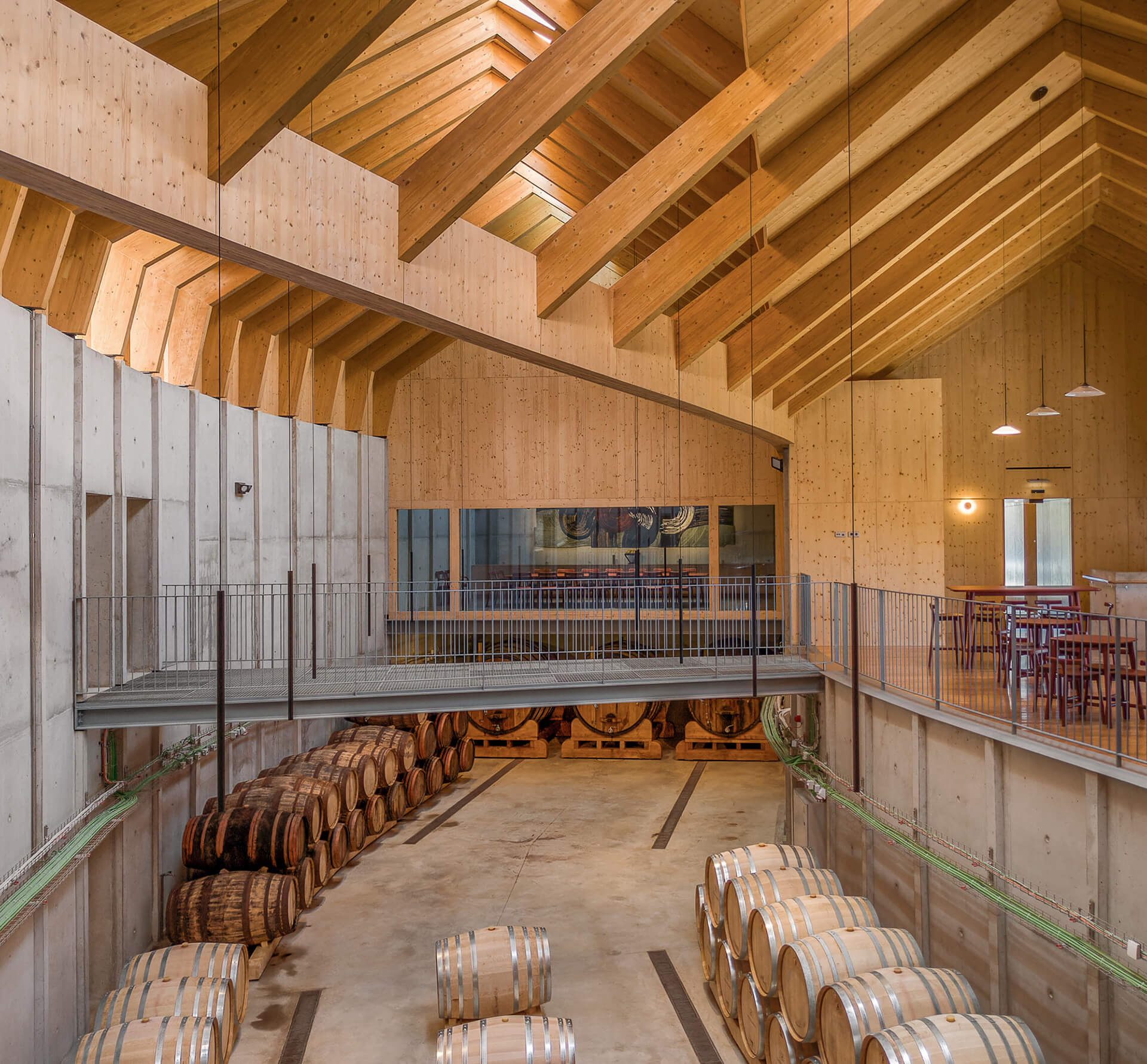

The winery’s main entrance houses a visitor center with a reception area and a wine shop that leads up to a meeting room with an all-glass wall and to the wine tasting area in a spacious balconied gallery, overlooking both the wine ageing area in the central nave of the building and the surrounding landscape. These rooms have access to the vineyard and a stone little old chapel, via a large terrace overlooking the Douro. Events that favor a prestigious wine tourism may be hosted to promote the winery and the region and celebrate both nature and architecture.





Sustainable Design & Vegetation

The development uses renewable energy sources, namely geothermal energy, to reduce greenhouse gas emissions and to provide ideal hydrothermal conditions for wine production and human comfort. Energy efficiency is fundamental to the winery’s design. The building’s northerly orientation and its specific insulation ensure optimum indoor temperatures and humidity levels, with limited mechanical climate control. The few windows and skylights frame the landscape and maximize the use of natural light.

Water conservation is also integral to the winery, which lacked public water supply infrastructure. Rainwater is harvested, drinking water sourced from artesian boreholes, and wastewater is treated and recycled for irrigation, cleaning, and fire prevention. Permeable pathways return rainwater to agricultural use, reducing waste and preserving resources.

The landscape design revives native flora, enriching biodiversity and supporting ecosystems that benefit vineyard health and promote economic activities that run parallel to the wine production.
